Nothing ruins a Riyadh summer afternoon like a hot living room and a breaker that has flipped off again. If this keeps happening, it is not a one-time glitch. Understanding AC tripping breaker causes is the first step to fixing the problem instead of just pushing the switch back on. Every reset without a repair risks overheating wires or killing the compressor.
AC units in Riyadh work harder than almost anywhere else. With summer temperatures past 45 degrees, your split AC pulls a heavy electrical load for hours every day, and that heavy draw is exactly why breakers trip. A tripping breaker is doing its job, cutting power before something overheats. Below, our technicians explain the six most common AC tripping breaker causes in Riyadh homes, which ones you can check yourself, and when to call for AC repair.
Why Your AC Trips the Breaker in the First Place
A circuit breaker is a safety guard, not an annoyance. It monitors current and trips when the load exceeds the wire’s safe limit. Your AC draws its heaviest current at startup, sometimes two to three times its normal amps. If anything in the system is struggling, that surge pushes past the breaker’s limit and it flips off. A tripped breaker is a warning light, not the fault itself.
6 AC Tripping Breaker Causes to Know
Here are the AC tripping breaker causes our technicians diagnose most often in Riyadh, ordered from most common to least.
1. Dirty Condenser Coils and Clogged Air Filters

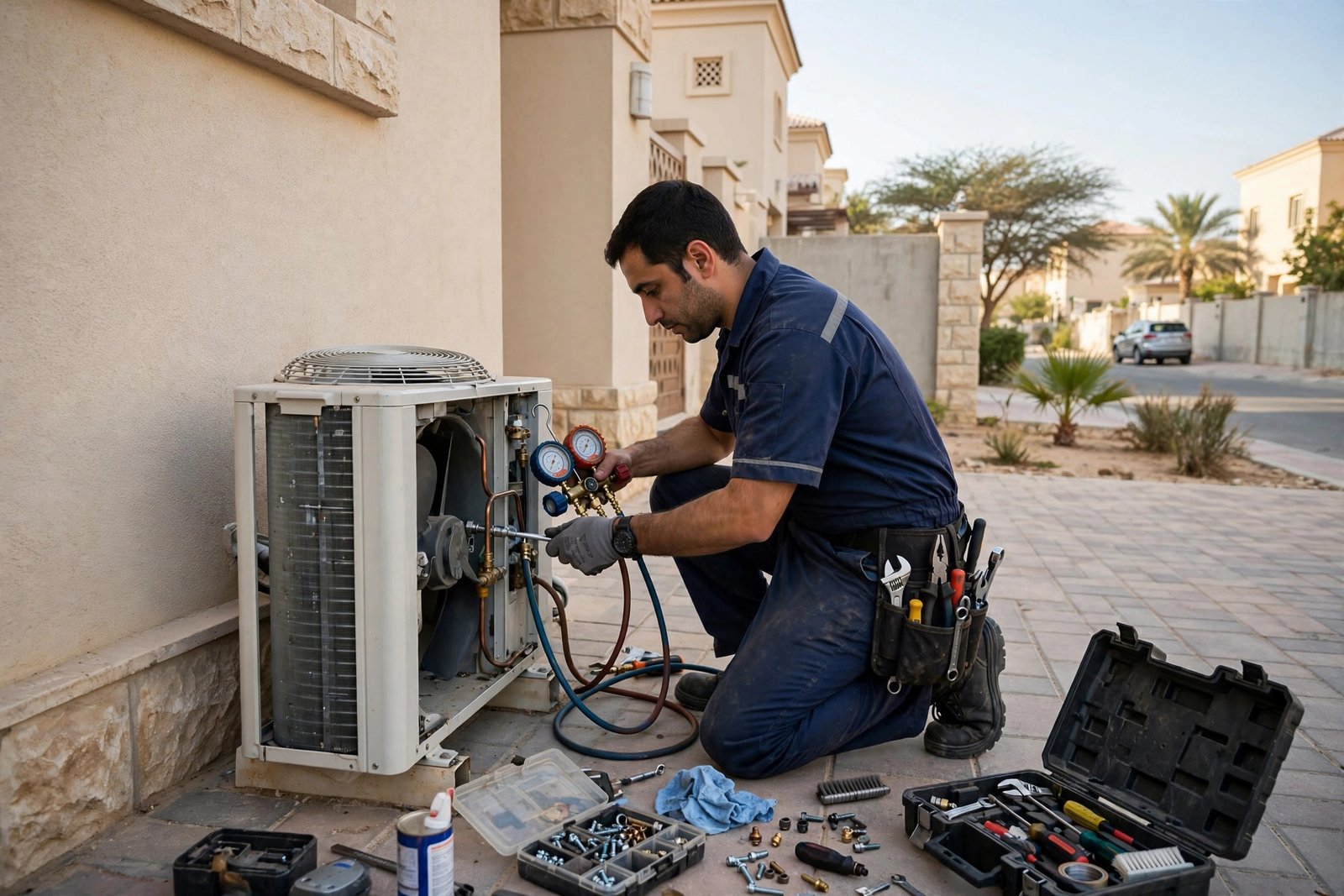

This is the number one cause we find on service calls. Riyadh dust storms coat condenser coils and clog indoor filters fast, forcing the compressor to draw more amps until the breaker trips. Clean the indoor filter every month in summer and have the coils washed at least once a season. A clogged system shows other symptoms too, so read our guide on split AC not cooling in Riyadh to spot related problems early.
2. A Weak or Failing Capacitor
The capacitor gives the compressor the jolt it needs to start. When it weakens with age or heat, the compressor keeps pulling high startup current, which trips the breaker. Signs include a humming outdoor unit or warm air from the vents. Our article on AC compressor repair shows how to tell a capacitor fault apart from a dead compressor.
3. Low Refrigerant (Freon) Levels
Low refrigerant forces your AC to run longer cycles, steadily raising the current draw. Freon does not get used up in a healthy system, so low levels almost always mean a leak. Signs include ice on the outdoor pipes and hissing near the unit. A technician must seal the leak before refilling, since a top-up without a repair just leaks out again.
4. A Short Circuit in the AC Wiring
Damaged wire insulation, loose terminals, or a shorted motor winding can let current jump where it should not go, causing an instant trip. This is the most dangerous of all AC tripping breaker causes, and it is one reason we wrote a full guide to circuit breaker tripping in Riyadh. If the breaker trips the moment you reset it, or you see sparks, scorch marks, or smell burning plastic, stop resetting it and switch the unit off at the isolator switch.
5. An Overloaded or Undersized Breaker
Sometimes the AC is fine and the breaker is just too small for the job. This happens when a breaker was sized for an older, lower-tonnage unit and a bigger split AC was installed later, or when heavy appliances share the same circuit. An electrician must check the breaker rating against the AC’s rated amps before any upgrade, because a bigger breaker on thin wires is a fire risk.

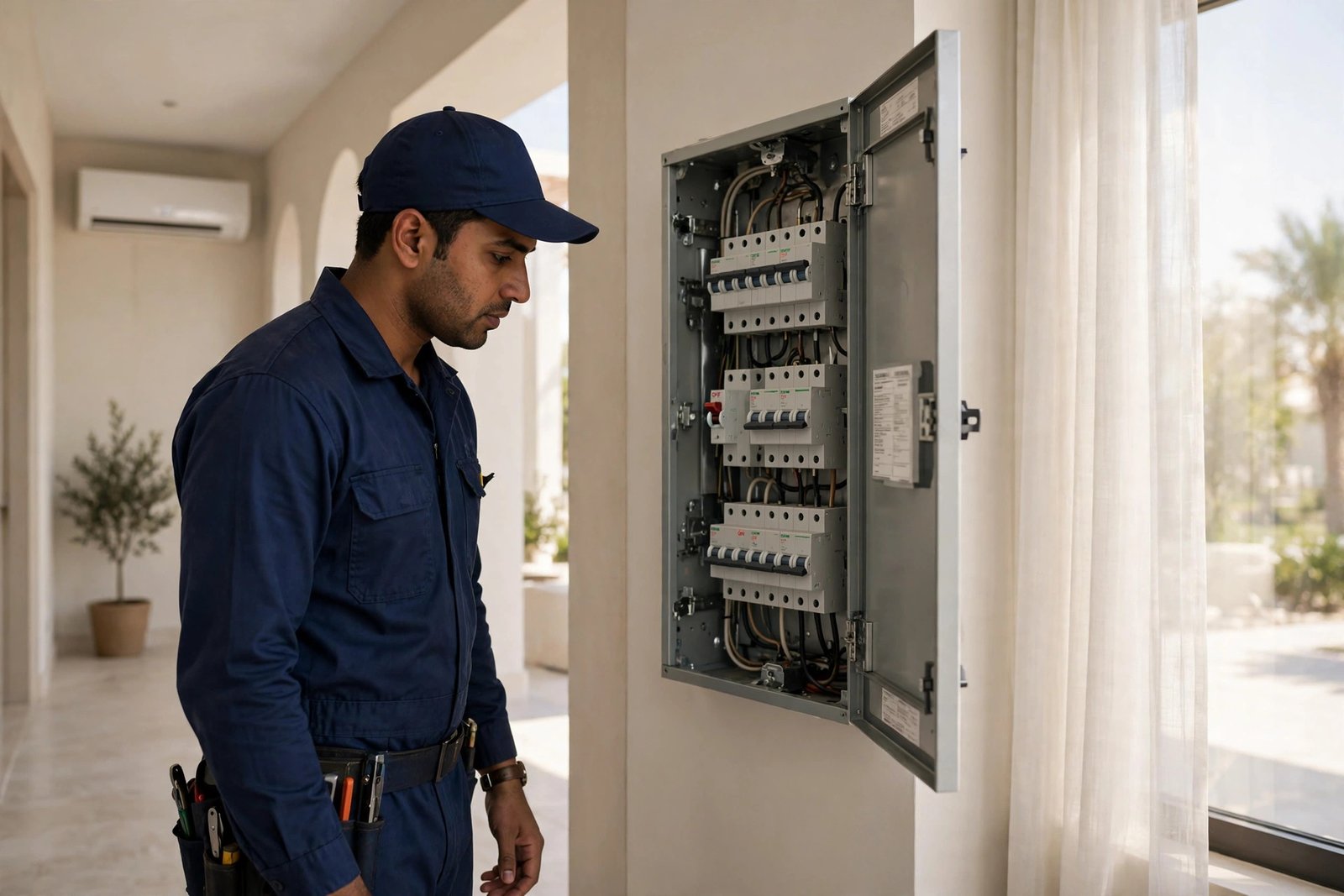

6. A Worn-Out or Faulty Breaker
Breakers themselves wear out. Years of heat and repeated tripping weaken the internal mechanism, so a 10 to 15-year-old breaker can trip well below its rated current. If your AC tests healthy yet the breaker still trips randomly, the breaker itself is the prime suspect. Replacing one is quick work for an electrician, never a DIY job.
Electrical Cause vs Fix: Quick Reference Table
This table shows which fixes are safe DIY jobs and which need a professional.
| Electrical Cause | Why It Trips the Breaker | Fix | DIY or Pro |
|---|---|---|---|
| Dirty coils / clogged filters | Compressor draws extra amps | Clean filters, wash condenser coils | DIY (filters); Pro (coil wash) |
| Weak or failing capacitor | Compressor struggles to start, long current surge | Test and replace the capacitor | Pro |
| Low refrigerant (Freon) | Longer cycles raise current draw | Seal the leak, then refill refrigerant | Pro |
| Short circuit in wiring | Sudden massive current spike | Trace and repair damaged wiring | Pro (urgent) |
| Overloaded or undersized breaker | Normal AC current exceeds breaker rating | Recalculate load, separate circuits, upgrade breaker with matching wiring | Pro |
| Worn-out breaker | Trips below rating, aged mechanism | Replace the breaker | Pro |
What You Can Safely Check Yourself
These checks fix a surprising share of trips:
- Clean the air filter. Wash the indoor unit filter, dry it fully, and refit it. A clean filter can drop the current draw immediately.
- Clear the outdoor unit. Switch the AC off, then clear dust and leaves blocking the condenser. Keep about 60 cm of clear space on all sides.
- Lighten the circuit. Avoid running heavy appliances on the AC circuit at the same time.
- Smell and look. Check the panel for burning smells or discoloration. Do not open it or touch wiring; just tell your technician what you noticed.
If the breaker trips again within a day or two, the cause needs professional testing. Regular upkeep prevents most repeats: the U.S. Department of Energy’s air conditioner maintenance guide confirms that clean coils and filters are the biggest factor in trouble-free cooling.
When to Call a Professional Immediately
Call for help right away if you notice any of these danger signs:
- A burning or melting-plastic smell near the AC or breaker panel
- The breaker feels hot, is discolored, or shows scorch marks
- Sparks, crackling sounds, or the breaker trips the instant you reset it
- The outdoor unit hums loudly but never starts
These are electrical hazards. Forcing a tripping breaker back on in these conditions can melt insulation and start a fire behind your walls.
How SheelTalab Fixes AC Breaker Trips in Riyadh

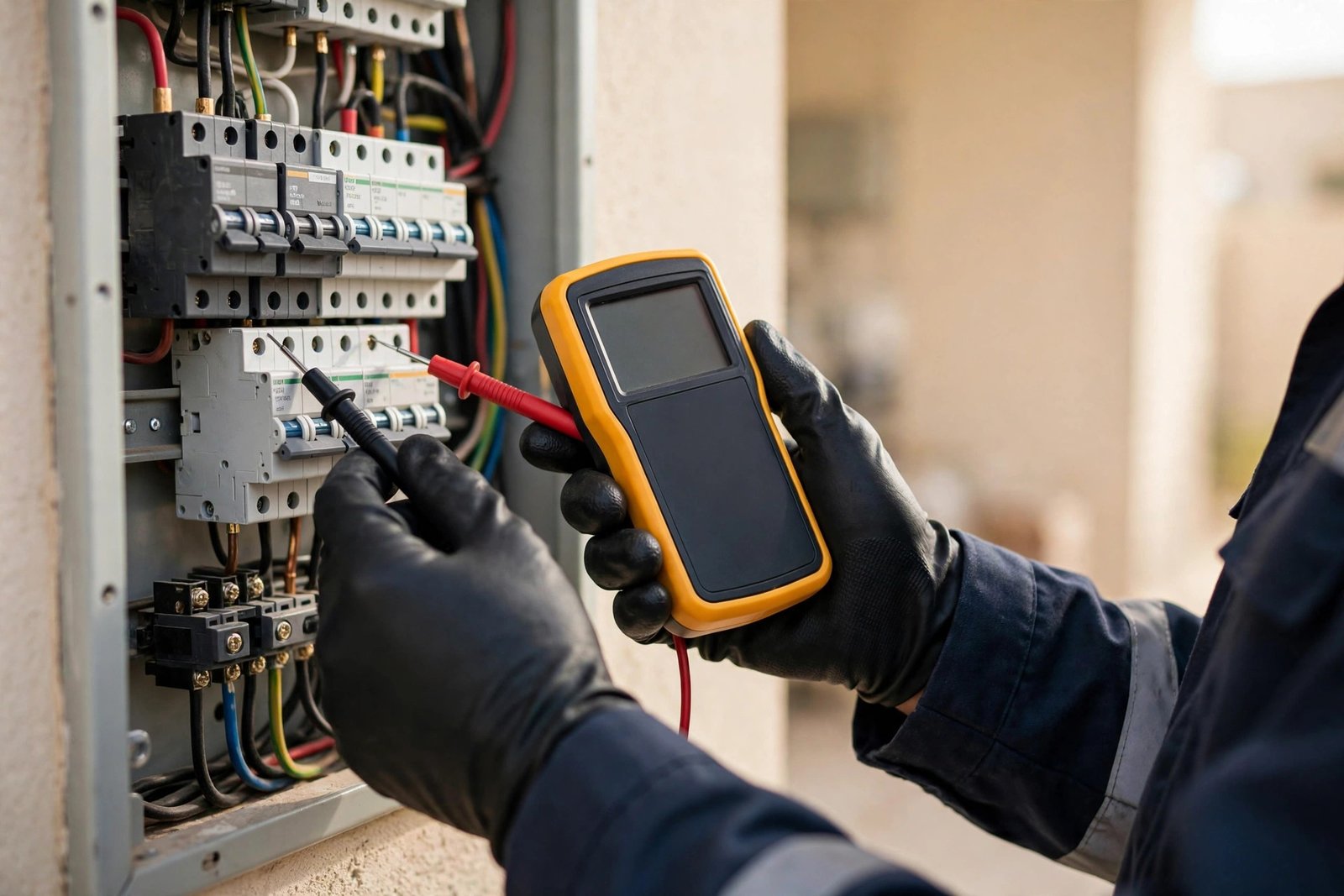

Our technicians start every visit with a full AC electrical inspection: breaker rating check, amp draw measurement, capacitor test, refrigerant pressure check, and wiring inspection. Our AC diagnostics and rapid repair service costs 120 SAR (was 180). We dispatch within 45 minutes anywhere in Riyadh, work 24/7, and every repair carries our 30-day golden warranty. With a 4.9/5 rating from over 18,500 jobs, we fix the root cause, not just the symptom.
Call 0570328344 or 0570328344 any time and we will get your AC running safely again.
Conclusion
A tripping breaker is your electrical system’s way of asking for help. Now that you know the AC tripping breaker causes, run the safe checks above and call a pro when you see danger signs. Do not keep resetting a tripping breaker; fix the root cause and stay cool.
