If you have spotted a thin crack spreading across your villa’s concrete wall or roof slab, you already know the worry it brings. Water follows every crack, and in Riyadh’s mix of 50°C summers, sudden seasonal rains, and shifting desert soil, a hairline crack can turn into an active leak within a single season. The professional fix is concrete crack injection repair: a method that fills the crack from the inside out with structural resin, restoring strength and sealing the leak path for good.
Unlike surface patching that peels off within months, concrete crack injection repair bonds the cracked concrete back together and stops water at its source. SheelTalab’s waterproofing team uses this technique daily across Riyadh, from villa rooftops in Al Nakheel to boundary walls in Al Olaya, because it lasts when the right resin meets the right crack.
In this guide, you will learn how the repair is done in five clear steps, when epoxy or polyurethane is the right choice, what the job should cost in Riyadh, and the warning signs that mean your crack needs a certified technician.
Why Concrete Cracks in Riyadh Villas
Most cracks in Riyadh homes are not caused by bad construction. The Saudi climate is harsh on concrete: daily temperature swings of 30 degrees or more make slabs expand and contract, and heavy seasonal rains push water into every weak point. Over time, this stress opens hairline cracks in roof slabs, water tank bases, boundary walls, and villa facades.
A crack that is dry today can start leaking after the next rain, feeding damp patches, paint bubbles, and mold inside your home. That is why treating the crack at its root, inside the concrete rather than on its surface, is the only repair that lasts. If your crack sits on a roof slab, pairing the injection with a full roof waterproofing in Riyadh protects the slab completely from above.
Concrete Crack Injection Repair: The 5-Step Process
Professional concrete crack injection repair follows a strict sequence. Each step matters, and skipping one is why DIY fixes fail. Here is exactly how our certified technicians do it on every job in Riyadh.
Step 1: Inspect and Map the Crack
Every job starts with a close inspection. The technician measures the crack’s width, length, and depth, and checks whether it is dry or actively leaking. Active leaks and cracks wider than 0.3 mm get priority, because they are already moving water through the concrete.
Step 2: Clean and Prepare the Surface
The crack line is brushed clean and any loose concrete, dust, or old sealant is removed. For roof and exterior cracks, the surface must be completely dry before resin goes in, since resin bonds only to clean, sound concrete.

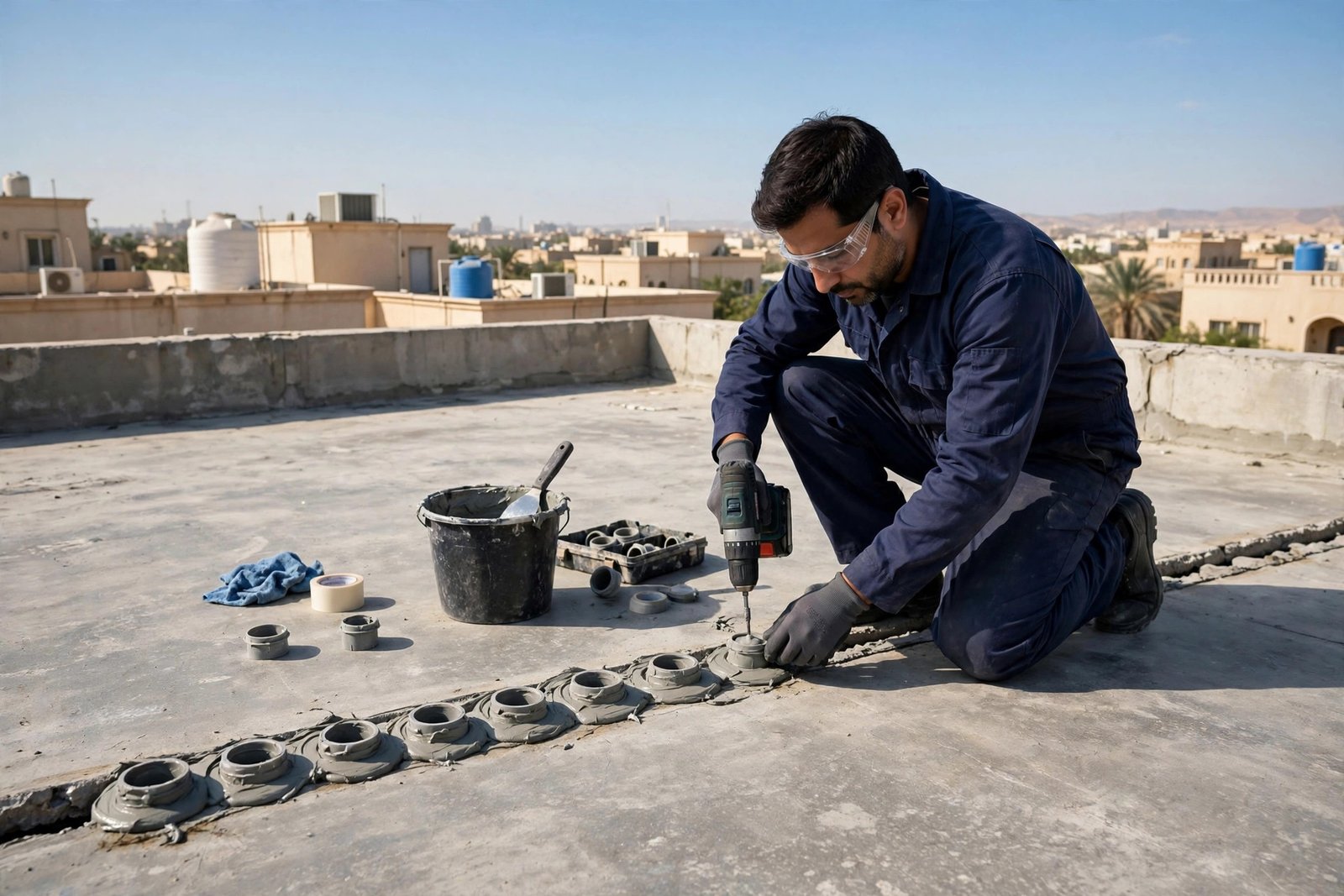

Step 3: Seal the Surface and Install Injection Ports
A paste-like surface seal is applied along both sides of the crack. Small plastic injection ports are bonded over the crack every 15 to 20 cm, becoming the only way in for the resin and letting the technician work the crack methodically from the lowest point upward.

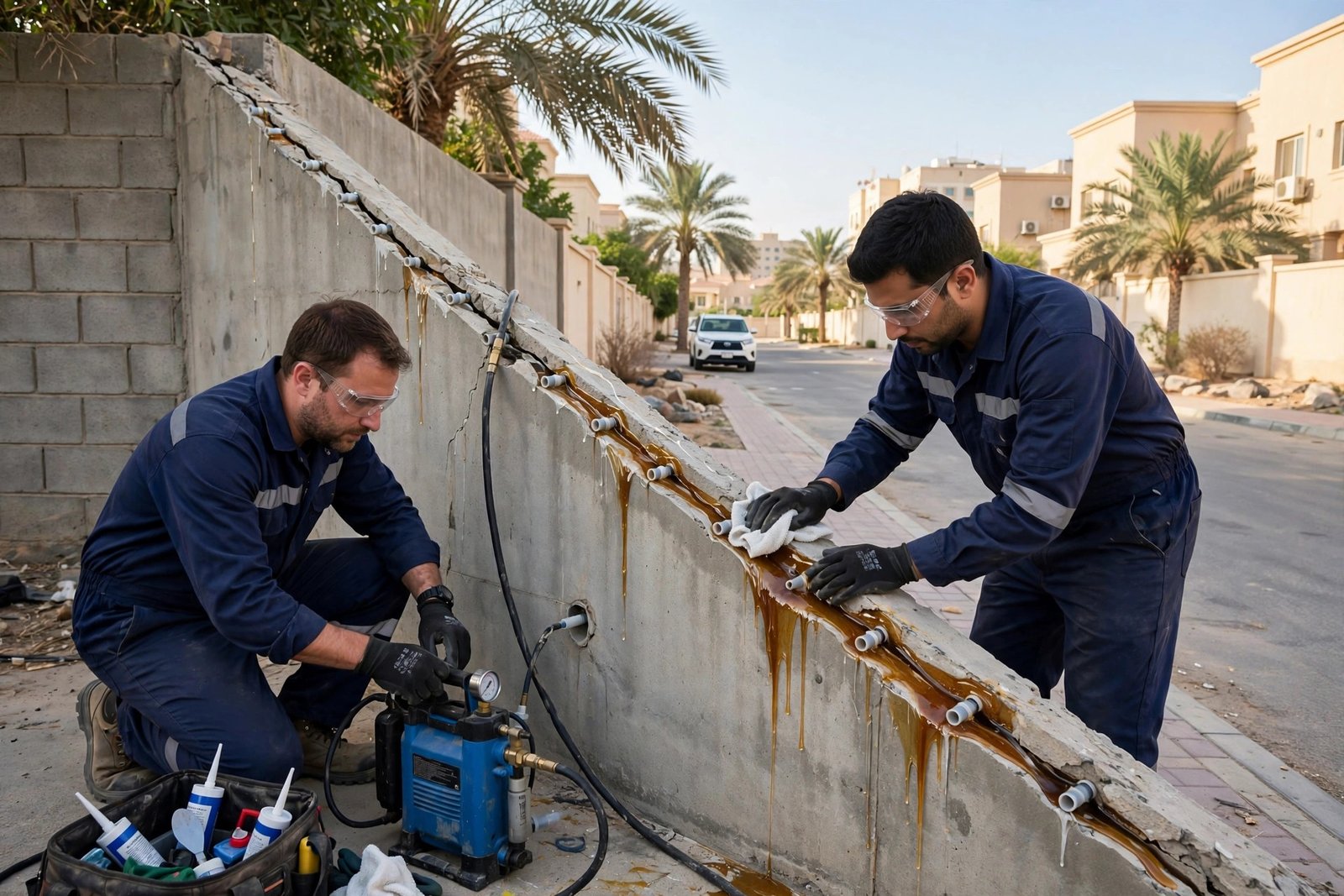

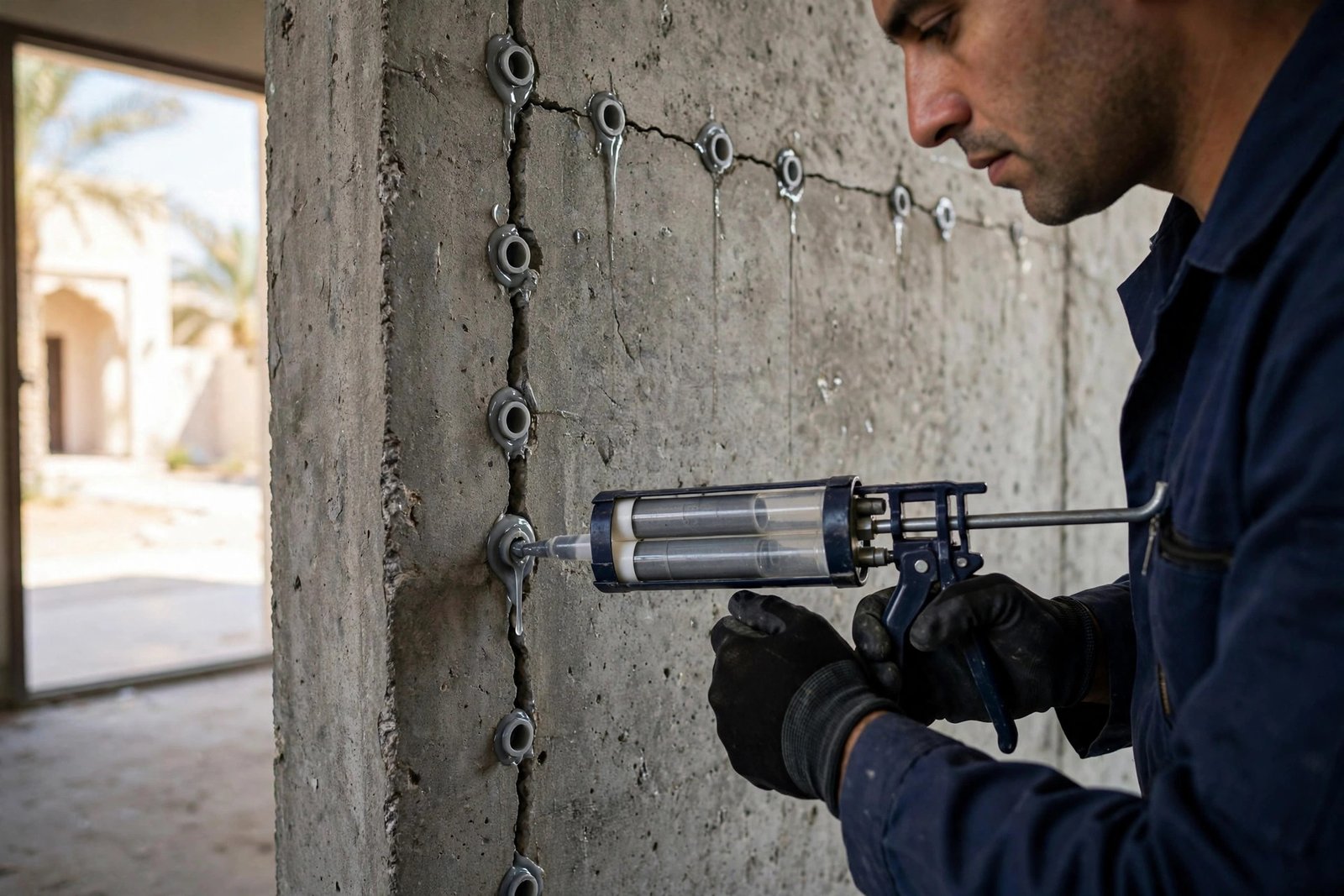

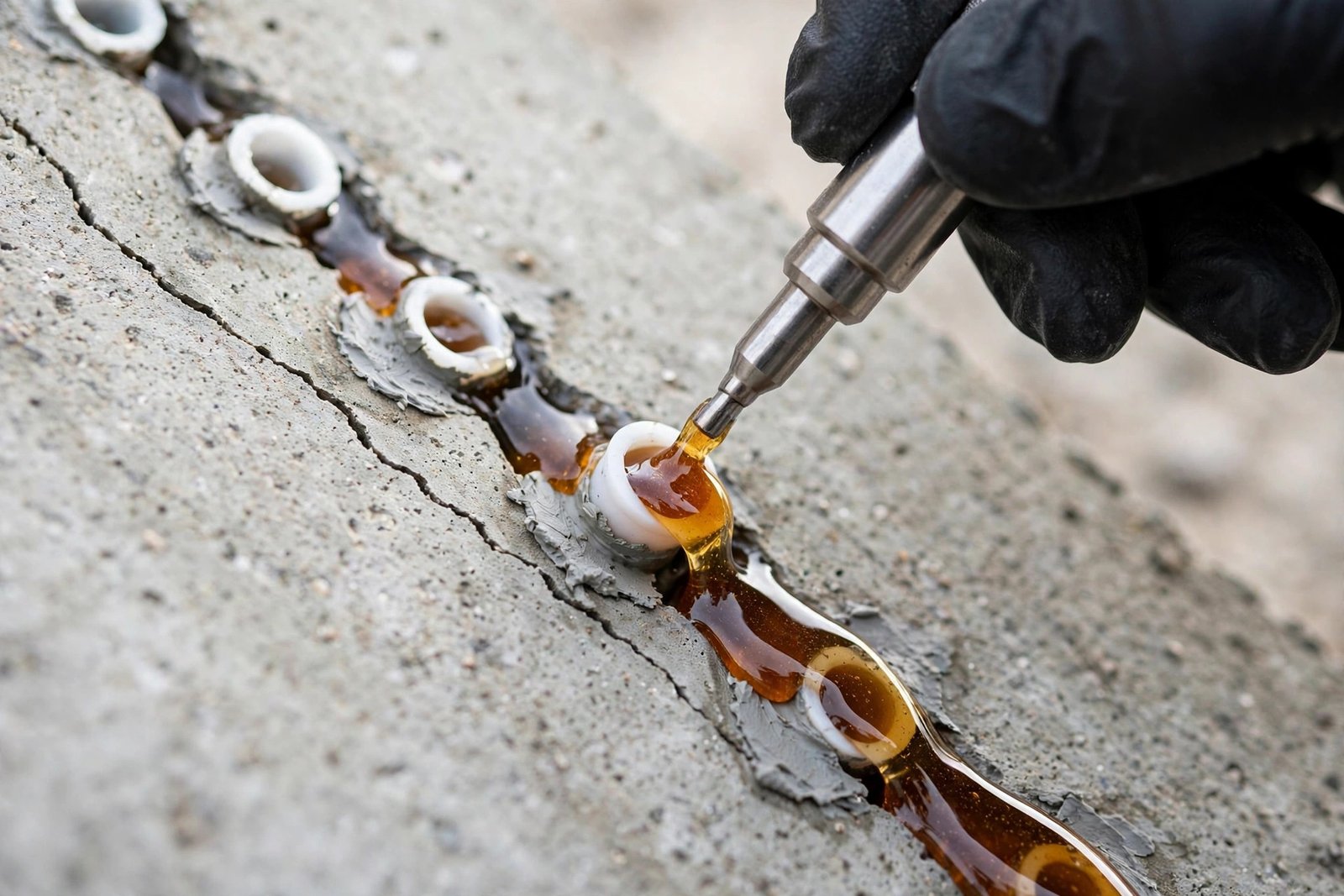

Step 4: Inject the Resin Under Pressure
Starting at the lowest port, resin is pumped in at controlled low pressure and worked upward until it fills the full depth of the crack. This rising-resin technique is what separates true concrete crack injection repair from a cosmetic fill. For actively leaking cracks, polyurethane foam is used because it expands on contact with water and stops the flow instantly.
Step 5: Remove Ports and Finish the Surface
Once the resin has fully cured, the ports are knocked off and the surface seal is ground flush with the concrete. The repaired concrete is now stronger than the surrounding material and waterproof from the inside out.
Epoxy or Polyurethane: Choosing the Right Resin
For a proper concrete crack injection repair, the resin choice matters as much as the technique. Two-component epoxy is the structural option: it restores the concrete’s strength and suits dry, stable cracks in foundations, walls, and roof slabs. The American Concrete Institute’s specification for crack repair by epoxy injection sets the industry standard we follow.
Polyurethane foam is the waterproofing option. It expands many times its volume on contact with moisture, making it the right choice for actively leaking cracks in water tanks, basements, and below-grade walls. It flexes with slight movement, so it stays sealed where rigid epoxy might re-crack. If your crack is near plumbing, pair the repair with a professional water leak detection in Riyadh first, so you know exactly where the water is coming from.
5 Signs Your Crack Needs Professional Injection
Not every hairline crack needs resin, but these five signs mean it is time to call a professional instead of reaching for a tube:
1. The crack is leaking. Any water coming through means it goes all the way through the concrete. Only injection seals it at depth.
2. It keeps coming back. If you have patched the same crack twice and it reopened, the water pressure behind it has not been addressed. Injection fixes the cause.
3. It is wider than a credit card edge. Cracks above roughly 0.3 mm weaken the concrete and let in far more water than they appear to.
4. Damp patches or mold surround it. Moisture traveling through the crack feeds mold and ruins paint and plaster. Wall cracks near wet areas often connect to bigger issues, so also check our bathroom waterproofing in Riyadh when leaks appear near bathrooms.
5. It is growing. Mark both ends of the crack with a pencil and the date. If it extends past the marks within a few weeks, the concrete is still moving and needs a professional assessment. If you spot two or more of these signs, skip the DIY sealant and book the repair.
What Concrete Crack Injection Repair Costs in Riyadh
Our concrete crack injection repair work is priced as part of our waterproofing service: 50 SAR per meter, down from 70 SAR. The final price depends on crack length, depth, and whether epoxy or polyurethane is required. A typical two to three meter villa crack costs less than a single repaint of the same wall, and unlike paint, the injection is a one-time permanent fix.
Be wary of impossibly cheap quotes. They usually mean surface sealant instead of real injection, or unbranded resin that degrades within a year. Our work carries the SheelTalab 30-day golden warranty and uses only genuine, certified resins. Call 0570328344 or 0570328344 for a free on-site inspection and an exact quote before we start.
Why Riyadh Trusts SheelTalab for Crack Injection
SheelTalab’s waterproofing team has completed more than 18,500 jobs across Riyadh with a 4.9 out of 5 rating. Every crack injection technician is certified and follows the ACI-guided five-step process above. We dispatch within 45 minutes anywhere in Riyadh, work 24/7 including weekends and holidays, and back every job with our 30-day golden warranty.
Do not let a small crack become a big leak. Message us on WhatsApp or call 0570328344 today for a free inspection and an honest recommendation: injection if it needs it, or simple advice if it does not.
