If your split AC suddenly stops cooling on a 45°C Riyadh afternoon, the culprit is often smaller than you think. Learning the split ac capacitor replacement signs can save you from a full compressor failure, a much bigger bill, and days without cooling. The capacitor is a small electrical part inside your outdoor unit that gives the compressor and fan motors the jolt they need to start and keep running, and in Riyadh’s extreme heat it wears out faster than most homeowners expect.
Most split AC capacitors last between three and seven years, but constant cycling in summer heat, voltage fluctuations, and dust shorten that life. When one starts failing, your AC gives you clear warnings. Below are the six signs our certified technicians see most often across Riyadh, plus what each symptom usually points to, so you can act before a small repair turns into a big one.
6 Split AC Capacitor Replacement Signs You Should Never Ignore
Each of these six signs points to a capacitor that is weak, failing, or already dead. Spotting them early is the difference between a quick part swap and a burned-out compressor.
1. The outdoor fan spins, but the compressor stays silent
This is the classic symptom. Your indoor unit blows air, the outdoor fan turns, but the air coming from the vents never gets cold. The compressor motor needs the capacitor’s starting jolt, and without it the compressor cannot engage. If you notice this pattern, the compressor-side run capacitor is the prime suspect.
2. Your AC takes a long time to start, with clicks or slow cranking
A healthy split AC starts within seconds of the thermostat’s call. A failing capacitor makes startup sluggish: you may hear clicking, repeated attempts, or a slow, struggling ramp-up. This hard-starting behavior is one of the most common split ac capacitor replacement signs we diagnose, and it stresses the compressor every single time it happens.
3. Warm or lukewarm air comes from the vents
When the run capacitor weakens, the compressor may run below full power or cut in and out, so your vents blow air that feels barely cool. Before assuming low refrigerant, remember that a weak capacitor produces the same symptom. Our AC Diagnostics & Rapid Repair visit (120 SAR, was 180) includes a capacitor test with a professional multimeter, so you get a confirmed answer instead of a guess.
4. A humming noise comes from the outdoor unit
A loud humming or buzzing from the condenser when the AC tries to start means the motor is energized but cannot turn. The capacitor is not delivering its phase-shifted current, so the motor just sits there and hums. Switch the unit off at the breaker if you hear this for more than a few seconds, because a stalled motor can overheat quickly.
5. The AC shuts off randomly or trips the breaker
A capacitor with an internal short can trip your circuit breaker the moment the AC kicks on. Milder failures cause random shutdowns: the unit runs for a while, the weak capacitor overheats, and the system’s safety controls cut power. If your breaker trips repeatedly on startup, stop resetting it and call a technician, since repeated trips point to an electrical fault that needs professional attention.

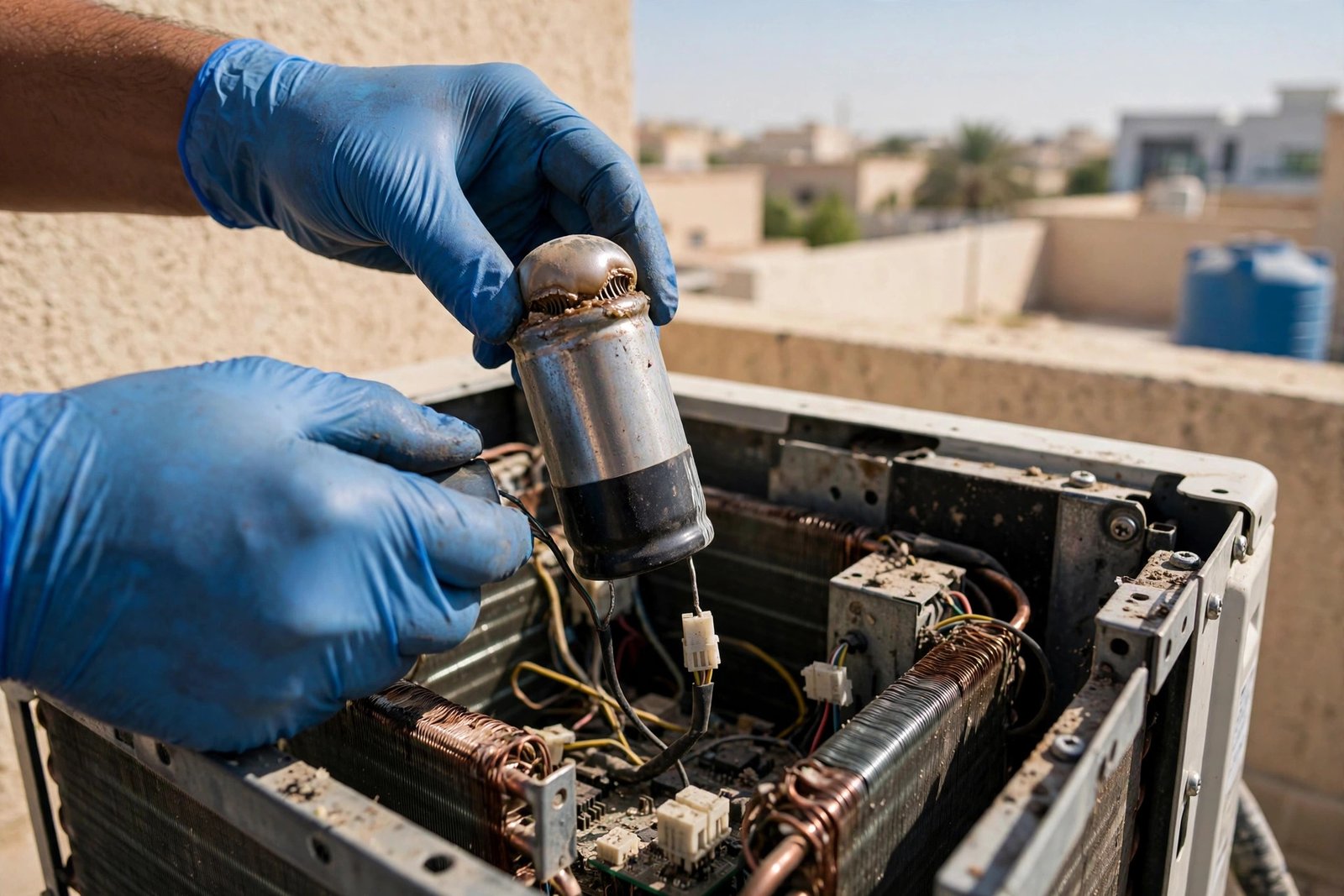

6. You spot a bulging, leaking, or rusted capacitor
With the power switched off, open the outdoor unit’s electrical panel and look at the metal can inside. A healthy capacitor is smooth and dry. A failed one often has a domed or swollen top, oily residue, or corrosion around the terminals. Visual damage is a certain failure, but many failed capacitors look perfectly normal, so a visual check alone is never enough.
Symptom vs Failing Part: Quick Diagnosis Table

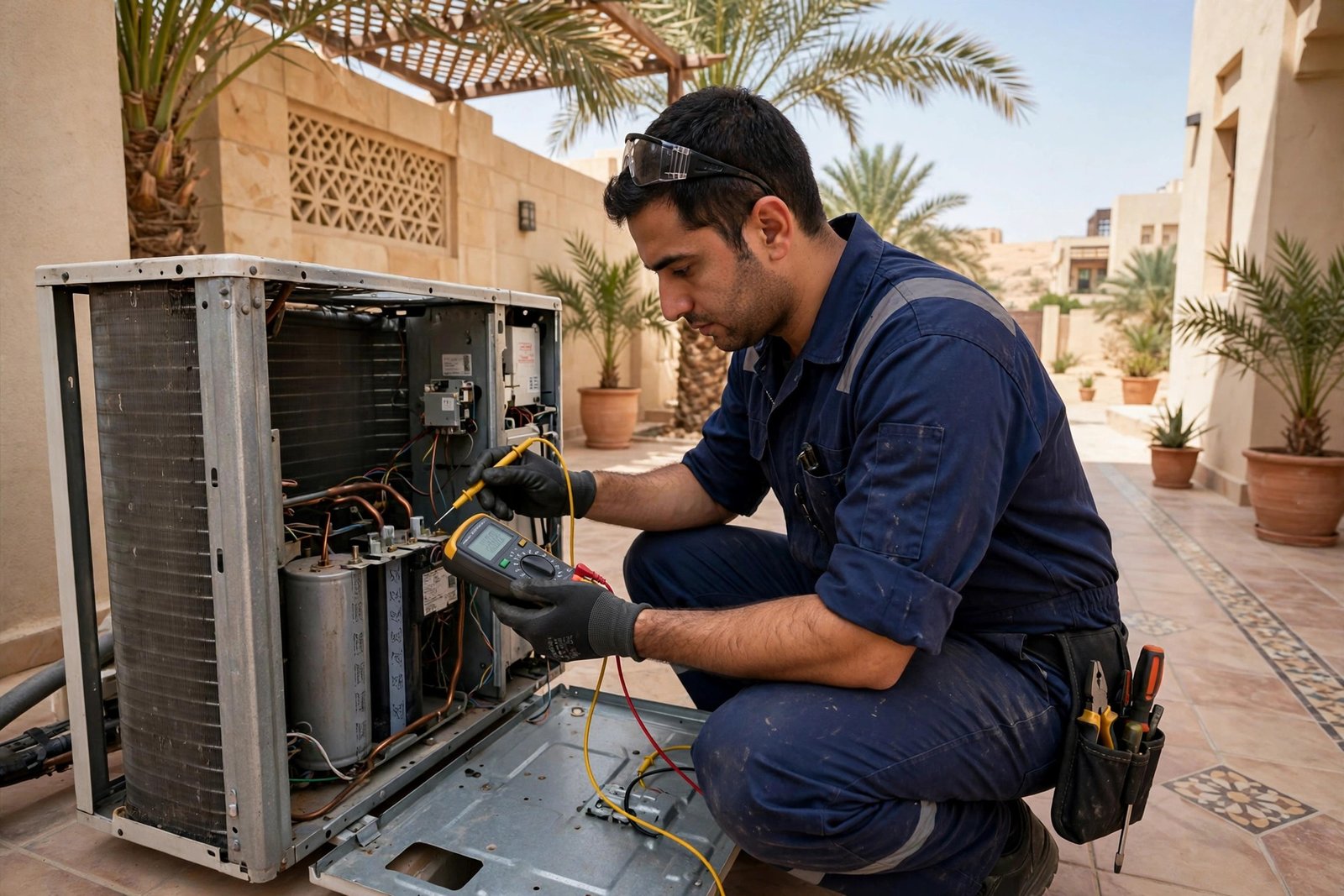

Use this table to match what you hear and see with the part our technicians will test first. These are the split ac capacitor replacement signs mapped to their most likely cause, based on thousands of jobs across Riyadh. Professional technicians confirm capacitor failure by measuring microfarads with a multimeter (for a technical walkthrough, see HVAC School’s capacitor testing and replacement guide).
| Symptom | Likely Failing Part |
|---|---|
| Outdoor fan spins, compressor stays silent | Compressor run capacitor (dual run cap, HERM terminal) |
| Humming from the outdoor unit, nothing starts | Run capacitor (fan or compressor side) |
| Slow or repeated startup attempts with clicking | Start capacitor or hard-start kit |
| AC starts, then shuts off on its own | Weak run capacitor overheating under load |
| Breaker trips when the AC kicks on | Shorted capacitor (needs immediate attention) |
| Warm air despite clean filters and running fan | Weakened run capacitor (compressor underperforming) |
| Swollen, oily, or bulging metal can in the panel | Visibly failed capacitor (replace at once) |
What Does Split AC Capacitor Replacement Cost in Riyadh?
Here is the transparent answer: our AC Diagnostics & Rapid Repair visit costs 120 SAR (was 180) and includes full capacitor testing with professional meters. If the capacitor is the problem, your technician gives you a fixed, upfront quote for the part and labor before any work begins, and the repair is covered by our 30-day golden warranty. Capacitor replacement is one of the quickest AC fixes we do, and most jobs finish in a single visit. For a full breakdown of typical AC repair prices, see our guide to AC repair cost in Riyadh.
Why You Should Not Ignore These Warning Signs
A failing capacitor does not just stop your cooling. It forces the compressor and fan motors to start and run under strain, drawing extra current and heat. Over weeks or months, that strain can burn out the compressor windings, turning a small part replacement into a compressor replacement, which is one of the most expensive AC repairs. Catching the split ac capacitor replacement signs early protects the heart of your system. If you want to understand the stakes, read our guide on AC compressor repair in Riyadh to see what repair versus replacement really costs.
Why SheelTalab Is the Fastest Way to Fix It
When your AC dies in Riyadh heat, speed matters. SheelTalab dispatches a certified technician to your door in 45 minutes, anywhere in Riyadh, 24 hours a day, 7 days a week. Every repair uses genuine parts, and our 4.9/5 rating across 18,500+ completed jobs means you can trust the diagnosis. Capacitor failures are a same-day AC repair for us in most cases.
Call 920084252 or 0570328344, or chat with us on WhatsApp. Tell us which of the six signs you noticed, and we will arrive prepared with the right capacitor for your unit’s make and model.
Final Thoughts: Act Before the Next Heatwave
Your split AC’s capacitor is small, cheap, and critical. If you recognize any of these split ac capacitor replacement signs, humming, slow starts, warm air, random shutdowns, or a visibly damaged capacitor, do not wait for it to fail completely. Book SheelTalab’s 120 SAR diagnostic visit today, and we will have your cooling back the same day, backed by our 30-day golden warranty.
