Getting split ac outdoor unit placement right matters more in Riyadh than almost anywhere else. When the summer thermometer climbs past 47°C, your condenser’s job is brutal: dump indoor heat into air that is already scorching. A unit crammed into a tight corner, baking in full afternoon sun, or choked by desert dust works 20 to 30 percent harder for the same cooling, raising your electricity bill and shortening the compressor’s life. The good news: most placement rules cost nothing if you plan them before installation day.
As AC technicians serving Riyadh every day, we have seen every placement mistake, from rooftop units vibrating through bedroom ceilings to courtyard condensers blocked by parked cars. This guide shares the 7 placement principles our installers follow on every job, so your unit cools faster, runs quieter, and lasts longer.
Why Correct Split AC Outdoor Unit Placement Matters in Riyadh
The outdoor unit (the condenser) is where your split AC releases all the heat it pulls out of your rooms. The hotter the surrounding air, the harder it works to push heat into it. In Riyadh’s summer, a poorly placed unit sits in air that can be 5 to 10 degrees hotter than the neighborhood average, purely from radiated heat off walls and tiled floors.
That extra heat forces longer, higher-pressure compressor cycles. The results are predictable: slow cooling, climbing electricity consumption, and a compressor that ages years ahead of schedule. The U.S. Department of Energy’s air conditioning guide confirms that shading the outdoor unit and keeping its airflow clear helps the whole system run more efficiently. In Saudi conditions, that principle is worth real money every summer.
Placement also affects noise, drainage, and access. A loose unit can hum through the upper floor, and one with no drainage plan leaves condensate puddles on courtyard tiles. The seven tips below solve problems we fix every week.
7 Pro Tips for Perfect Split AC Outdoor Unit Placement
Use this checklist before your installer picks a spot. If your unit is already badly placed, ask about relocating it during a split AC installation visit. It is usually cheaper than years of wasted electricity.
1. Give It 60 cm of Breathing Room on Every Side

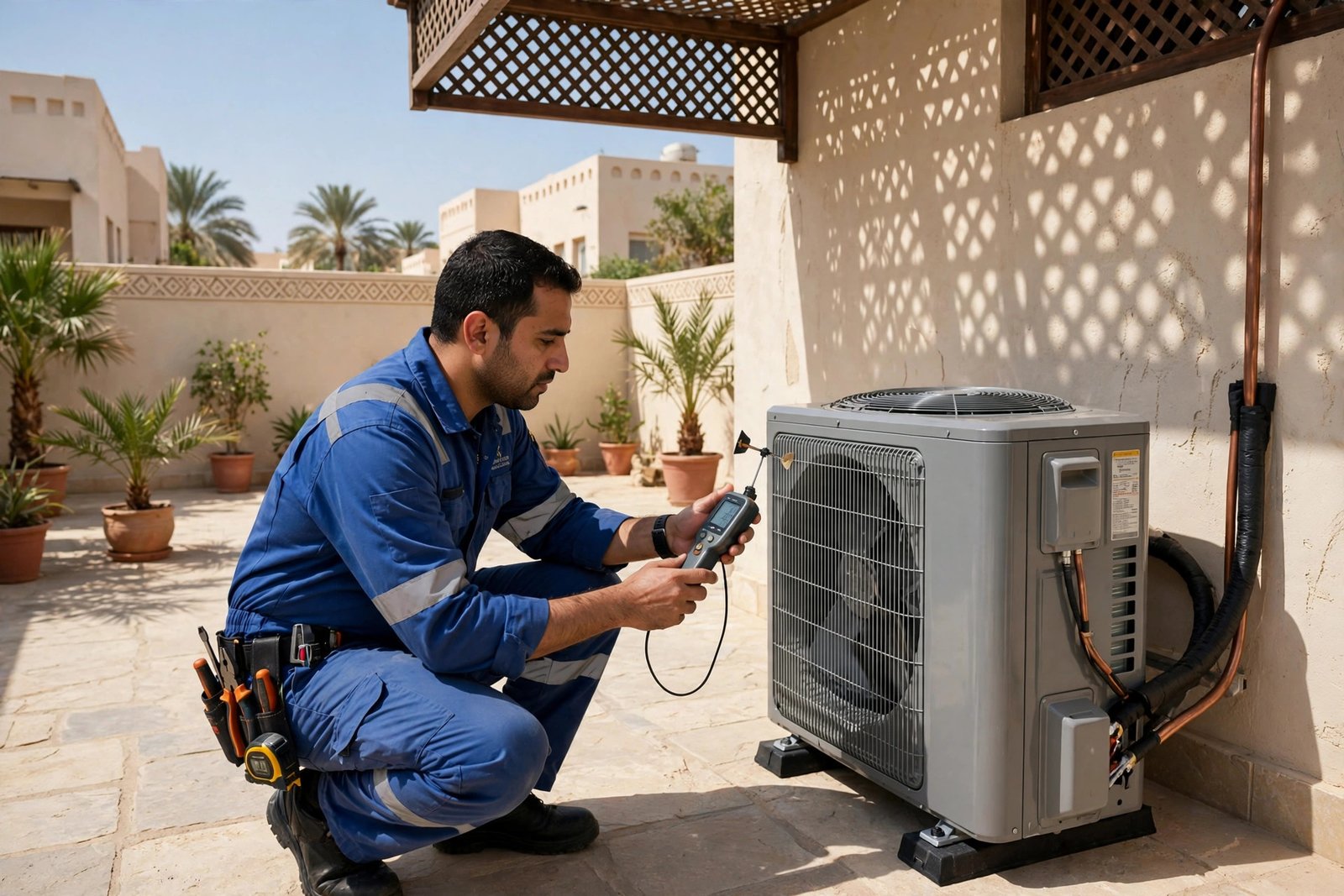

Proper split ac outdoor unit placement starts with airflow. The condenser fan needs at least 60 cm of clear space on all sides and a couple of meters of open space in front of the fan grille. Never sandwich the unit between two walls, box it into a decorative cabinet, or park a car in front of it. Restricted airflow recycles hot exhaust through the coils, and cooling performance collapses.
2. Choose the North Side or a Shaded Spot

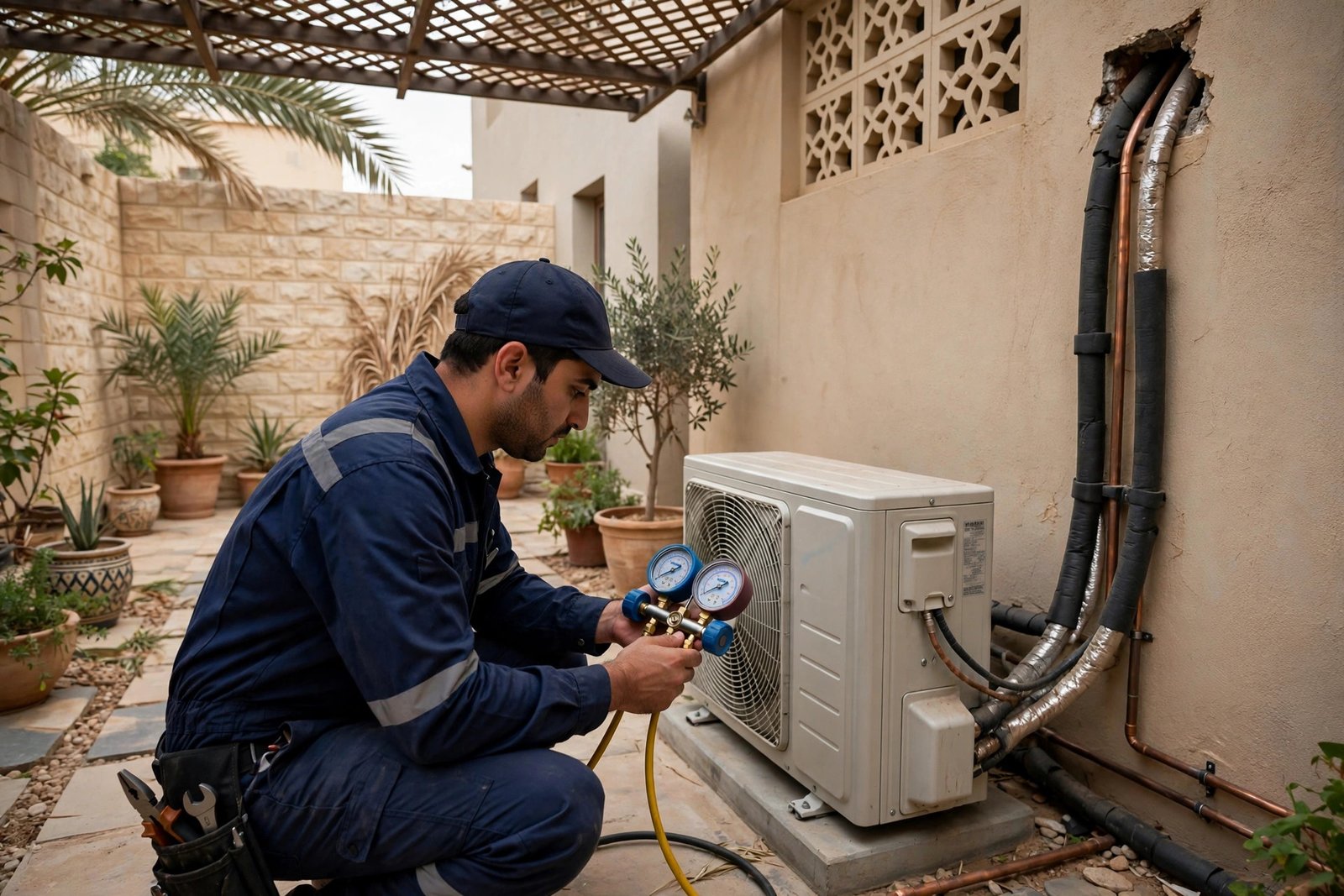

Direct Riyadh sun can push a condenser’s casing past 60°C on July afternoons. The north-facing wall is the gold standard for split ac outdoor unit placement in Riyadh because it stays shaded through the hottest part of the day. East walls get gentler morning sun; avoid west walls with their brutal afternoon heat. If the only spot is sunny, add a ventilated sunshade above the unit, keeping it clear of the top exhaust fan and the tip 1 clearances.
3. Mount It Level on a Solid, Vibration-Free Base

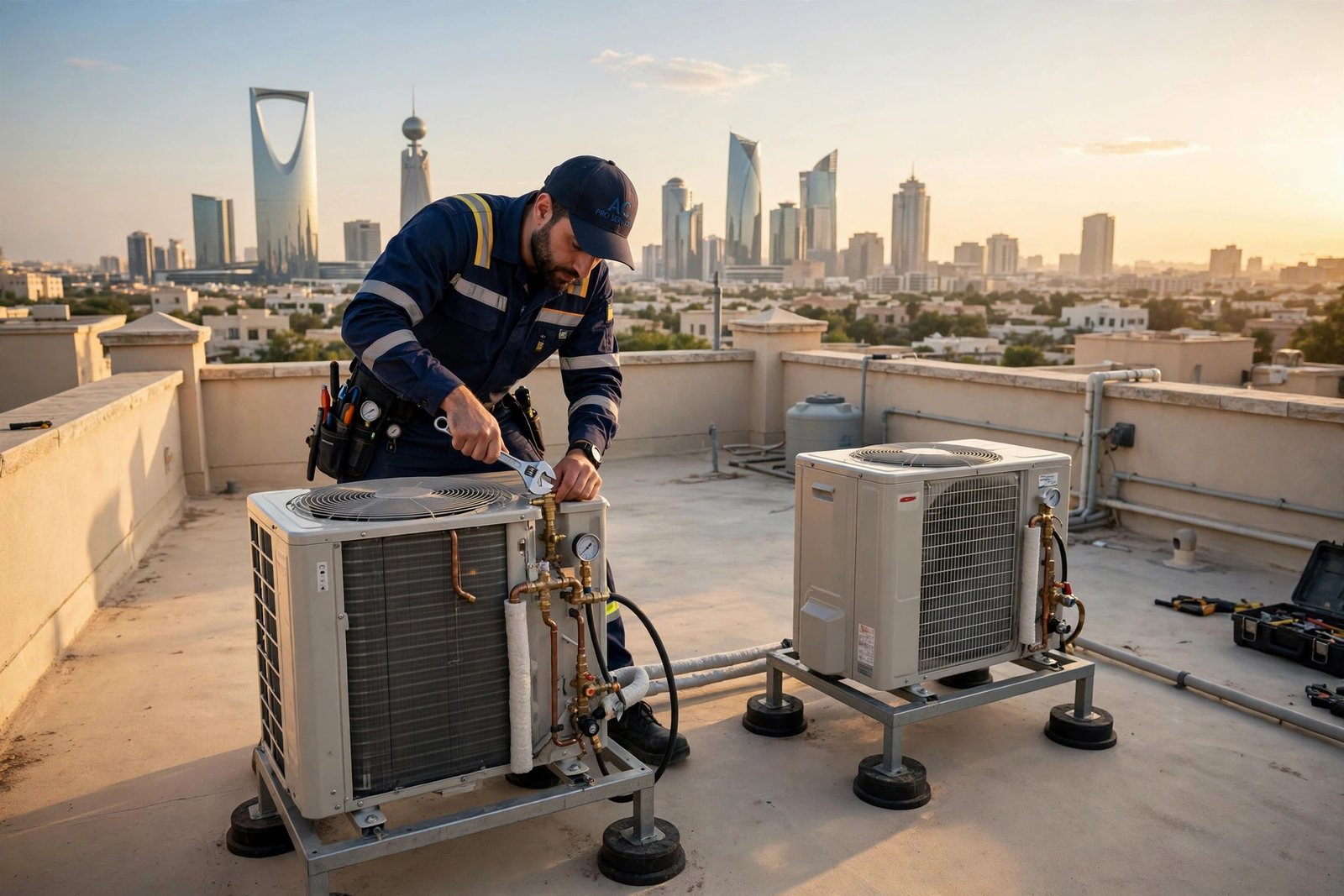

A tilted or loose condenser vibrates, and vibration causes two kinds of damage: it rattles the room below (a common complaint with rooftop installs above bedrooms) and slowly loosens refrigerant pipe joints until they leak. Place the unit on a level concrete plinth or galvanized steel stand with rubber vibration pads under each foot. Stands also lift the unit so rainwater drains away from the electronics instead of pooling underneath.
4. Keep the Refrigerant Line Set Short and Insulated
The copper pipes to the indoor unit carry the refrigerant that does all the cooling. Long line sets lose efficiency and invite leaks, so keep the outdoor unit close to the indoor unit, ideally under 10 meters of piping. Both lines need proper insulation: the thicker suction line must be fully wrapped in UV-resistant insulation with joints sealed in waterproof tape. Exposed or sun-cracked insulation is one of the first things we check on a Freon refill call, because heat gain through bare copper is pure wasted cooling.
5. Plan Where the Condensate Water Goes
Every split AC sheds condensate water, especially in humid spells and during the wash-down after a deep chemical wash. Route the drain outlet to a floor drain or planted bed, never onto a walkway (algae turns tiles slippery) or toward the villa’s foundation. A short PVC drain line to the nearest gully costs almost nothing at install time and prevents the green stains under so many Riyadh condensers.
6. Keep It Away From Dust, Grease, and Exhaust
Riyadh dust storms clog condenser fins fast, so keep the unit away from dusty lots, majlis barbecue areas, kitchen exhaust vents, and generator exhaust. Grease and fine dust coat the coil fins like a blanket, trapping heat inside. A simple rule: if you would not want to stand there breathing during a shamal wind, your AC does not want to be there either. Cleaner spots mean fewer deep washes and longer-lasting cooling capacity.
7. Leave Room for Servicing and Future Cleaning
Your unit will be serviced, washed, and repaired, so the technician needs to open side panels, attach gauges, and reach every fitting. A unit wedged behind a water tank or buried in landscaping turns a 30-minute job into a two-hour struggle. Keep a clear meter of working space in front of the service panel. See our guide to split AC installation costs in Riyadh for what a proper visit includes.
Outdoor Unit Placement Mistakes Riyadh Homeowners Make
The most common split ac outdoor unit placement mistake we see is choosing a tidy spot over a breathable one: behind decorative lattice, under a staircase landing, or flat against a south-facing wall because the pipe run was shorter. These look neat in photos but cook the unit all summer. Other classics include two condensers face to face, blowing hot exhaust into each other, and a heavy unit on a rusted stand that thuds through the ceiling at every startup.
If your unit already lives in a bad spot, a professional relocation during your next service visit costs far less than replacing a compressor that died years early from heat stress.
Professional Split AC Installation and Servicing in Riyadh
SheelTalab’s certified technicians install, relocate, and service split AC outdoor units across Riyadh every day, with 45-minute rapid dispatch, 24/7 availability, a 30-day golden warranty, and a 4.9 out of 5 rating from more than 18,500 jobs. AC Diagnostics and Rapid Repair is 120 SAR (was 180 SAR), a Split AC Deep Chemical Wash is 200 SAR (was 250 SAR, code SUMMER50), and a Freon Leak Check and Refill is 250 SAR (was 320 SAR). Call 0570328344 or 0570328344 and we will survey your villa and recommend the best spot for your outdoor unit before we touch a single pipe.
Smart split ac outdoor unit placement is the cheapest efficiency upgrade an AC owner can make. It costs nothing extra on installation day, yet it pays you back every summer in lower bills, quieter operation, and a compressor that keeps its cool for years.
