Shopping for a hidden cooling system can feel overwhelming. Contractors all promise the quietest unit and the lowest power bill, yet quotes differ by thousands of riyals. This concealed ducted ac buyers guide covers the eight facts that decide whether your system cools evenly, lasts for years, and stays affordable through Riyadh’s 47°C summers.
A concealed ducted system hides the indoor unit above the ceiling and sends cooled air through insulated ducts to discreet grilles in each room. That is why it is the first choice for new villas, majlis areas, and offices across the capital. The risk is the hidden design itself: a wrongly sized unit or poorly sealed ducts get buried above your ceiling, where they are expensive to reach and even more expensive to fix.
Below are the eight checks every buyer should make before signing a contract. Unsure about a quote you already have? SheelTalab’s HVAC team will inspect your full system: heavy-duty coil cleaning for ducted, concealed, package, and VRV units, duct sanitization, digital airflow balancing, filter upgrades, and motor lubrication, all from 350 SAR (was 450), with 45-minute rapid dispatch anywhere in Riyadh, 24/7 availability, certified technicians, genuine parts, and a 30-day golden warranty backed by a 4.9/5 rating from 18,500+ jobs. Call 920084252 or 0570328344.
What Is a Concealed Ducted AC System?

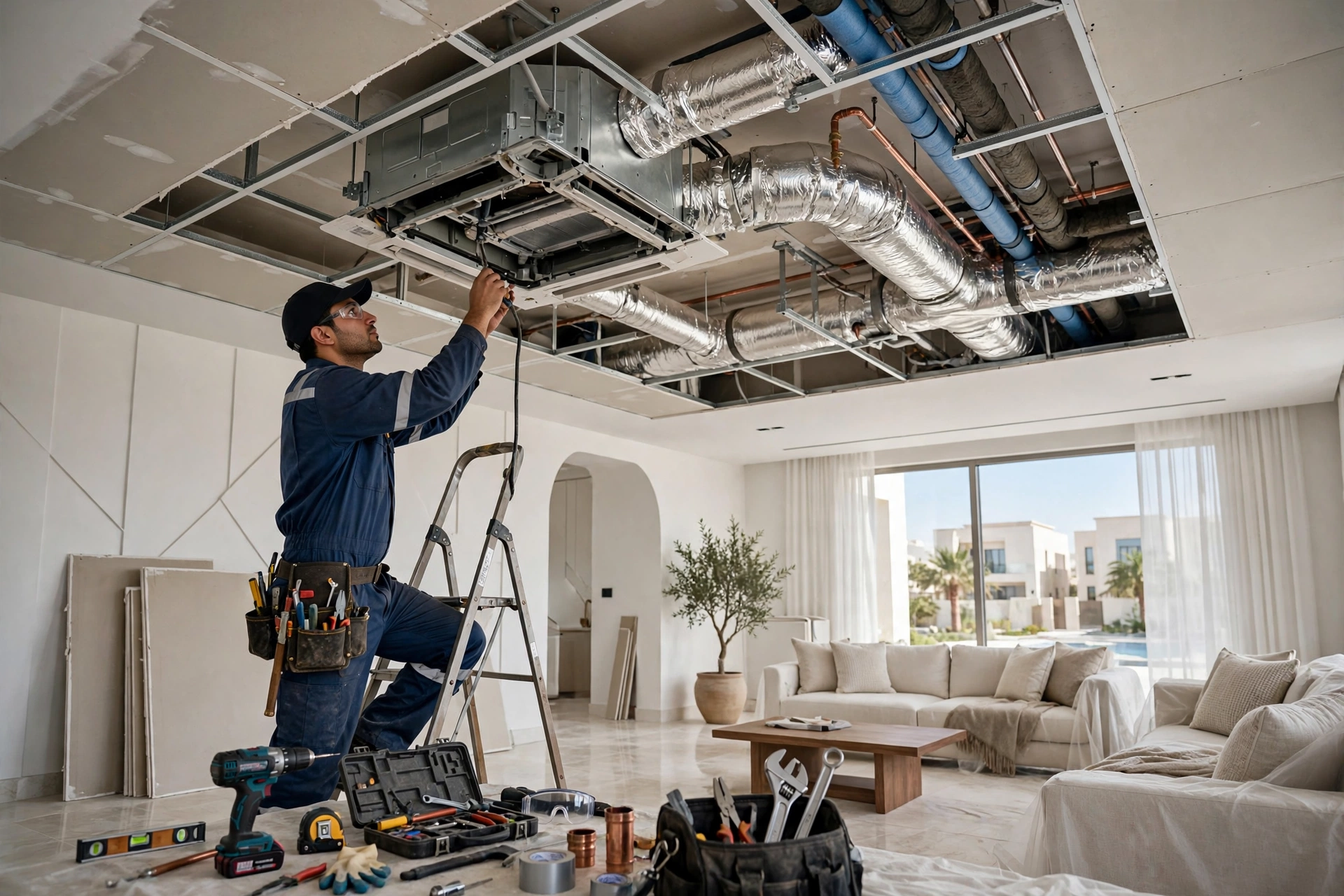

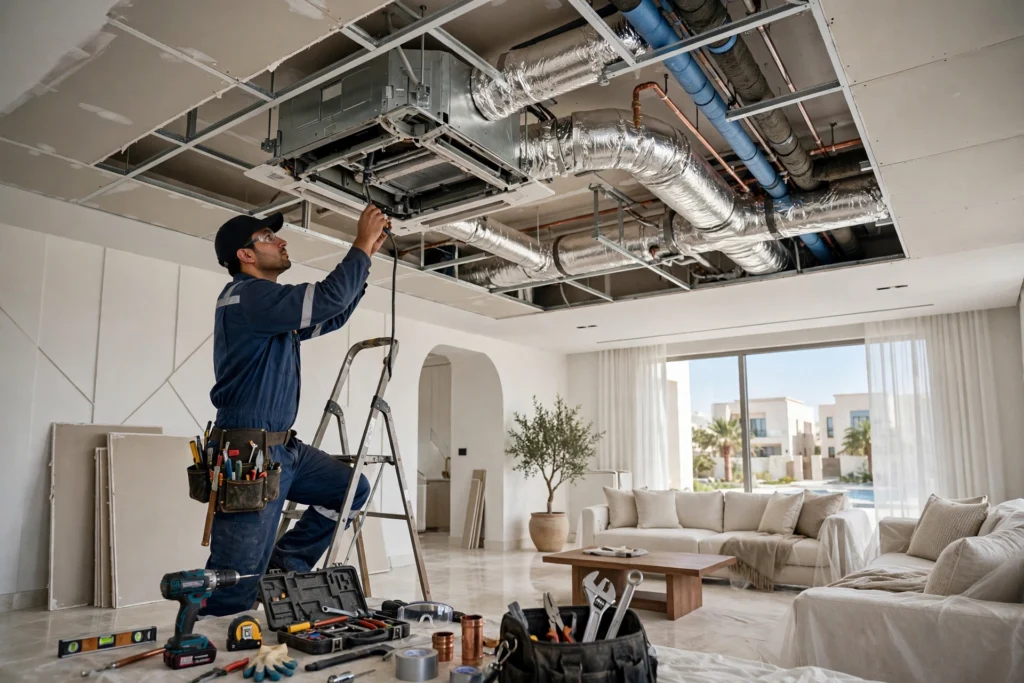

It has two main parts: an outdoor condenser, and an indoor fan coil unit mounted out of sight above a false ceiling or in a service shaft. Insulated ducts carry cooled air to slim ceiling grilles in each room, while a return duct pulls warm air back for re-cooling.
These systems are sized in tons like other central air conditioners, and one unit can serve a whole villa floor. Zoning dampers cool occupied rooms more and empty rooms less, which matters when Saudi electricity tariffs make every kilowatt count.
Concealed Ducted AC Buyers Guide: The 8 Things That Matter Most
Check these eight points with any contractor before you agree to a price.
1. Size the Unit With a Real Heat Load Calculation
The costliest mistake in this concealed ducted ac buyers guide is wrong tonnage. Too small runs nonstop while rooms stay warm; too big short-cycles, fails to dehumidify, and wears out its compressor early. Insist on a proper heat load calculation covering room sizes, ceiling heights, windows, insulation, and occupancy. If a contractor quotes tonnage after a five-minute walkthrough, get a second opinion.
2. Choose Inverter Technology for Riyadh’s Heat
Riyadh’s long cooling season makes inverter compressors worth every riyal. Instead of slamming on and off at full power, an inverter varies its speed to match demand, cutting electricity use by 30 to 50 percent. Ask for the EER or SEER rating and a seasonal running-cost estimate in riyals: the cheapest quote on paper often becomes the most expensive system on your electricity bill within two summers.
3. Check the Static Pressure Rating
Concealed ducted units must push air through meters of ductwork, filters, and grilles, and that resistance is measured as external static pressure. A low static pressure unit on long or twisty ducts cools unevenly and strains its fan motor. Match the rating to your actual duct layout, and choose mid or high static models for larger villas and commercial spaces. This spec decides performance on a 47°C afternoon.

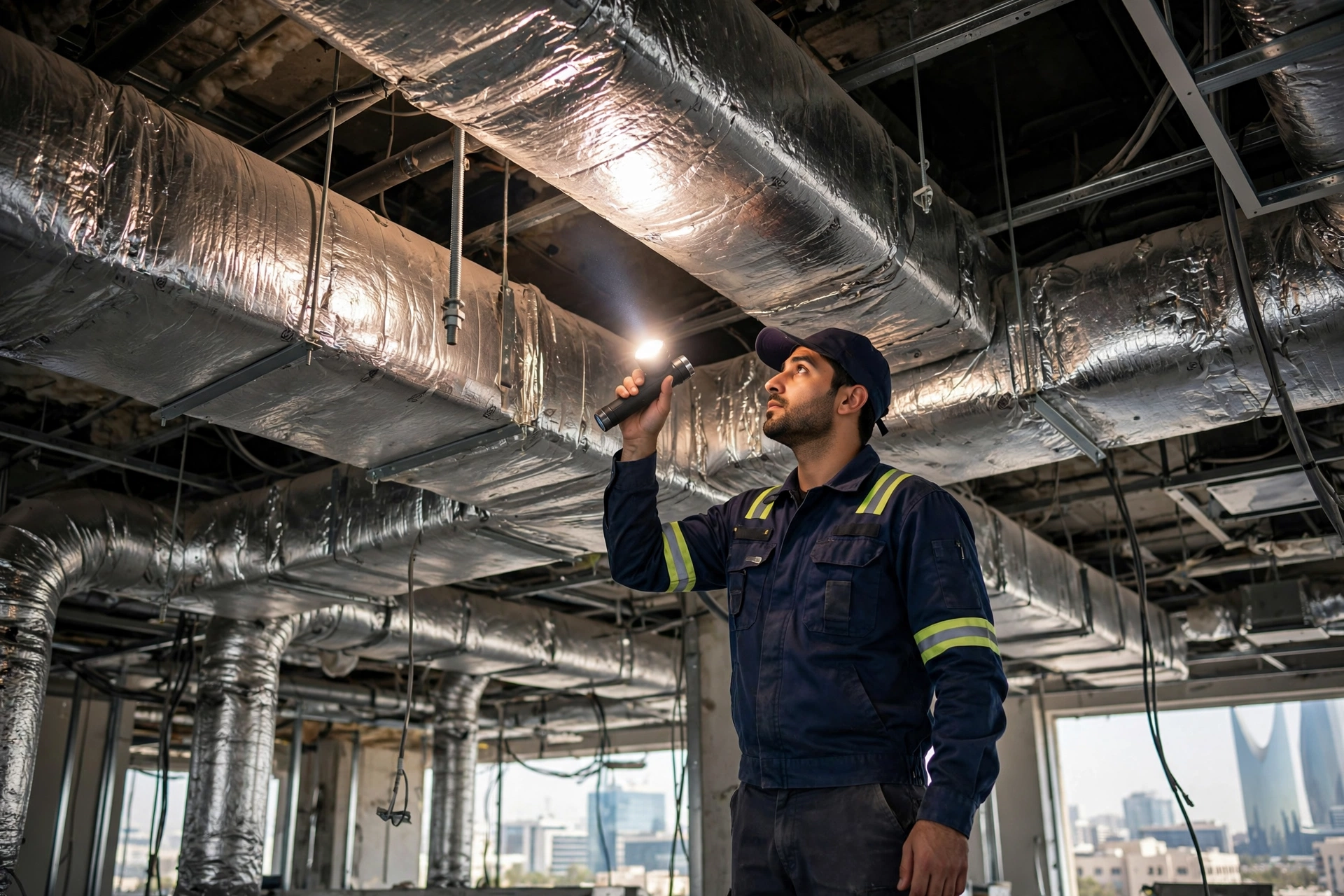

4. Demand a Proper Ductwork Design
Ducts are the lungs of the system, and bad ductwork ruins even a premium unit. Ducts should be sized per room, insulated against condensation, sealed at every joint, and routed with gentle bends. Ask who designs the ducts, not just who installs them, and request a layout drawing first: leaky ducts can waste a third of your cooling. If ducts already exist, a professional duct cleaning in Riyadh restores airflow and air quality.
5. Ask About Noise Levels
Concealed does not mean silent. Fan noise travels through ducts and thin ceiling panels, and a poorly isolated unit can hum through a bedroom ceiling all night. Ask for the rated sound level in decibels at each fan speed, and insist on vibration isolators and flexible duct connectors. If quiet bedrooms matter, say so before the unit is ordered: moving it later means opening the ceiling.
6. Plan Fresh Air and Ventilation
Sealed modern villas trap stale air and cooking odors. A good ducted design includes a fresh air intake bringing in filtered outdoor air so rooms feel crisp, not stuffy. Confirm the fresh air volume per room and the filtration grade, especially if anyone in the home has allergies. Settle ventilation at the design stage.
7. Insist on Accessible Drainage and Service Points
Every air conditioner produces condensate water, and concealed units produce it where you cannot see it. A blocked drain above a false ceiling can soak insulation and stain ceilings before you notice. Demand a properly sloped drain with a safety overflow switch, plus a service hatch large enough to reach the coils, filters, and drain pan. Have the installer show you every access point before the ceiling is closed.
8. Verify Warranty, Genuine Parts, and After-Sales Support
A ducted system is a fifteen-year relationship, so buy the company as much as the machine. Get the compressor and parts warranty in writing, confirm only genuine parts will be used, and ask who answers when something fails at midnight in August. SheelTalab backs every HVAC job with certified technicians, genuine parts, a 30-day golden warranty, and 24/7 response with 45-minute dispatch. Many owners also add an annual AC maintenance contract to catch small faults before they become ceiling-opening repairs.
What a Professional Installation Should Include

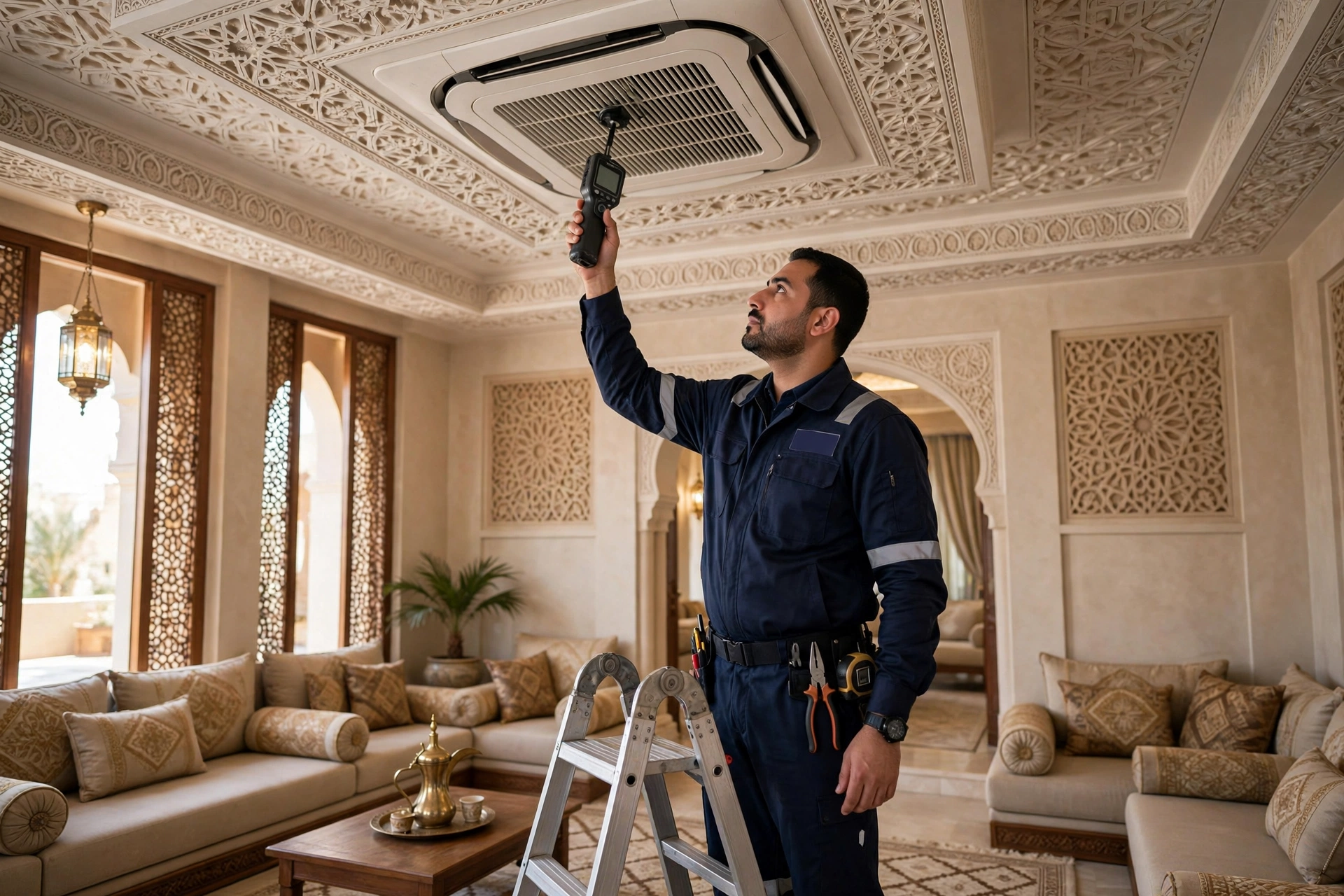

Use this concealed ducted ac buyers guide as a checklist on installation day. A professional crew pressure-tests refrigerant lines with nitrogen, vacuums the system to remove moisture, measures airflow at every grille, balances dampers per room, and walks you through the thermostat, filters, and drains. They also follow recognized design practice: ASHRAE, the global authority on HVAC standards, publishes the duct design manuals qualified installers work from.

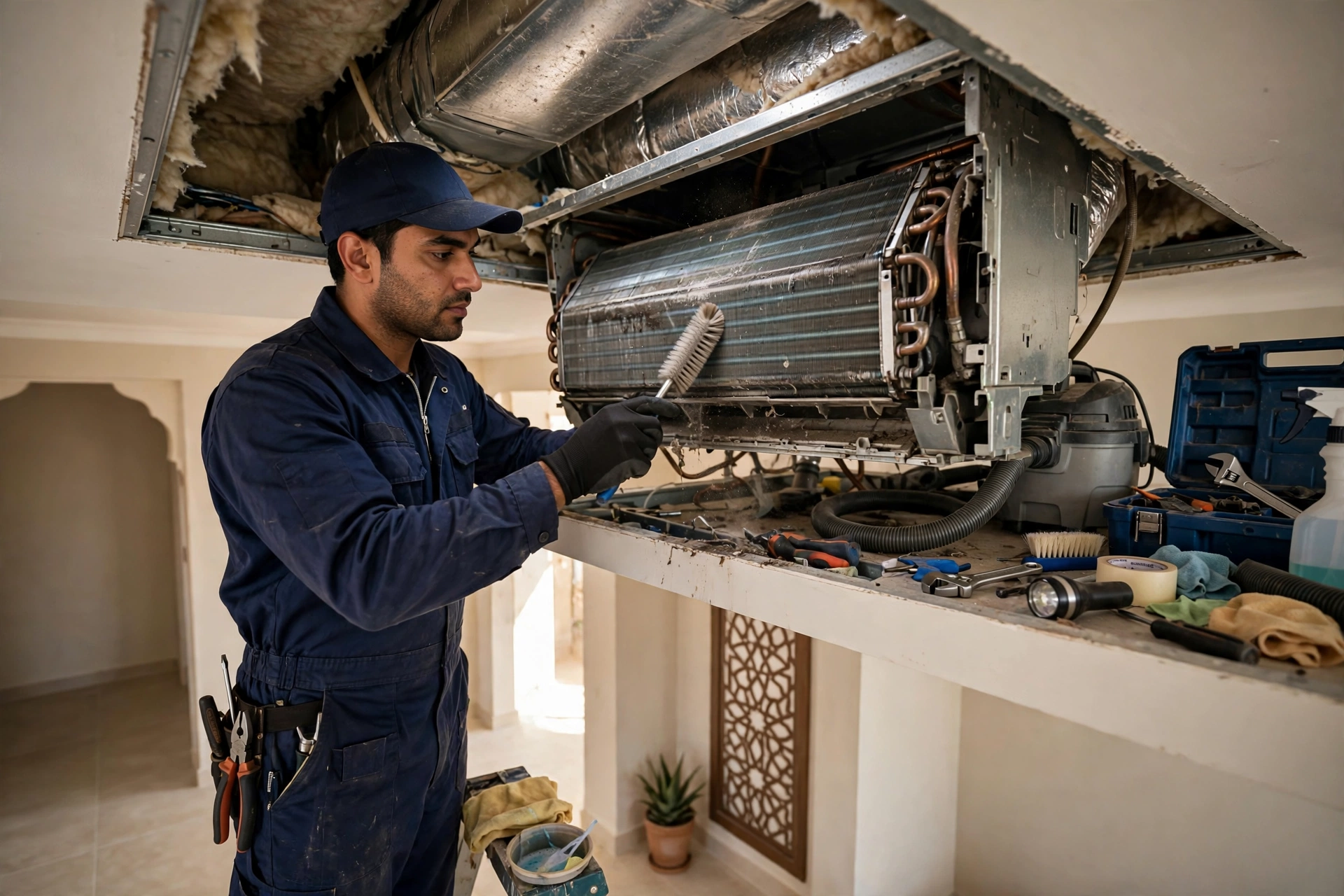

After handover, book the first full service within a year. SheelTalab’s Central HVAC and Ducted Systems visit (350 SAR, was 450) covers heavy-duty coil cleaning, duct sanitization, digital airflow balancing, filter upgrades, and motor lubrication.
Budgeting the Real Cost of Ownership in Riyadh
The purchase price is only the first line of the bill. Budget for the electrical connection and panel upgrades, the full ductwork and grille package, ceiling access hatches, condensate drainage, and yearly professional servicing. A realistic Riyadh villa installation often totals well above the equipment quote, so insist on itemized proposals.
Running costs depend on tonnage, inverter efficiency, thermostat discipline, and cleanliness. A neglected ducted system can quietly add hundreds of riyals to your summer electricity bill. Compare quotes line by line, and if one is dramatically cheaper, ask what was left out. Our guide to AC repair costs in Riyadh shows which charges are normal and which are red flags.
Getting a Second Opinion Before You Sign
If a contractor pressures you to decide today, slow down and get an independent inspection. A second set of eyes on the heat load calculation, duct design, and proposed equipment can save you from a fifteen-year mistake. SheelTalab’s HVAC specialists inspect concealed and ducted systems across Riyadh daily, with full inspections from just 350 SAR.
Keep this concealed ducted ac buyers guide handy while you collect quotes, and judge every proposal against the same eight points: sizing, inverter efficiency, static pressure, ductwork, noise, ventilation, service access, and warranty. Get those right and your hidden system will cool quietly and cheaply for over a decade. For an inspection or second opinion, call SheelTalab at 920084252 or 0570328344, 24/7, with 45-minute dispatch anywhere in Riyadh.
